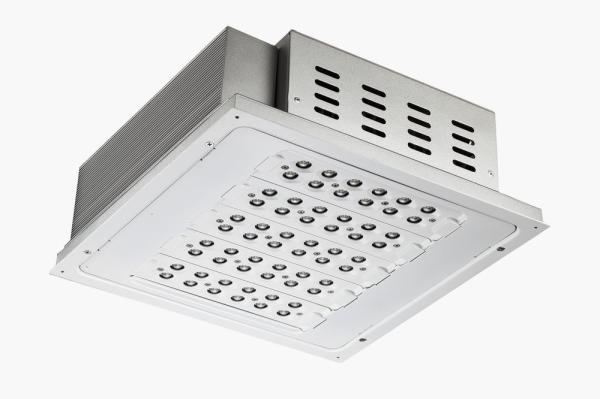

Features:
1. Fully modularized sets with high brightness LED;
2. Thermal conductivity of Aluminum alloy housing;
3. Anti corrosion, good thermal dissipation;
4. Reduced energy usage , LED lifespan 50, 000 hours;
5. Passed the ROHS/CCC/CE/ safety standard;
6. No UV radiation, No electromagnetic radiation and thermal radiation.
1. Motion-detection System:
The sensitivity of the motion sensor can be adjusted to cover a small or wide area (1m to 10m).enable dimming without delay when full-power light is not needed,output 100% full power brightness when people are in area, then auto-dim to 5% after 5sec-10minwhen people leave the area.
2. More Energy Savings:
The canopy used the high brilliance solid-state LEDs, it is allows up 65% energy savings than traditional light, and more potential energy saved by auto-dimming system. The lifespan of LED light result very low maintenance cost.
Energy Cost Savings:
|
The below energy cost savings is an example for your information
|
|
Fixture Type
|
HZ-TJD140WS
|
Mercury Vapour fittings
250W
|
Mercury Vapour fittings
400W
|
|
Present Wattage
|
140W
|
250W
|
400W
|
|
x Annual Operating Hours
|
8760hrs
|
8760hrs
|
8760hrs
|
|
|
=1,226,400 watt-hours
|
=2,190,000watt-hours
|
=3,504,000 watt-hours
|
|
÷1,000 per year(kWh)
|
=1226 kWh per year
|
=2190 kWh per year
|
=3504kWh
|
|
x kWh rate of $0.11
|
=$135per year
|
=$241 per year
|
=$385per year
|
|
x 100 Annual energy cost per space *
|
=$13,500
|
=$24,100
|
=$38,500
|
|
Total Estimated Annual Savings*
|
|
=$10600
|
=$25000*
|
*Based on 100 lamps operating 8760hrs per year.
*The savings didn’t include further savings of the auto-dim energy savings and maintenance fees of incandescent
*Auto-dim range can be adjustable
*Your actual savings may vary depending on the energy costs in your geographic location.
LED Industrial Lights Beatiful Outlook :
Specification: S=One mold model P=Recessed model
|
Product Number
|
Power
|
Volts﹡
|
Power Factor
|
Colour Temp.
|
Light Colour
|
CRI
|
Approx. Lumen
|
Sensing
|
IP Rating
|
Beam Angle
|
Rated Avg.Life(Hrs.)
|
|
HZ-TJD140WSID
|
140W
|
240V/110V
|
>0.9
|
3000K± 200K
|
W.W
|
>80
|
11200lm
|
Yes
|
IP66
|
120°
|
35,000hrs
|
|
HZ-TJD140WSD
|
140W
|
240V/110V
|
>0.9
|
4000K± 300K
|
N.W
|
>80
|
11900lm
|
Yes
|
IP66
|
120°
|
35,000hrs
|
|
HZ-TJD140WSHD
|
140W
|
240V/110V
|
>0.9
|
5500K± 500K
|
P.W
|
>80
|
11900lm
|
Yes
|
IP66
|
120°
|
35,000hrs
|
|
HZ-TJD140WPID
|
140W
|
240V/110V
|
>0.9
|
3000K± 200K
|
W.W
|
>80
|
11200lm
|
Yes
|
IP65
|
120°
|
35,000hrs
|
|
HZ-TJD140WPD
|
140W
|
240V/110V
|
>0.9
|
4000K± 300K
|
N.W
|
>80
|
11900lm
|
Yes
|
IP65
|
120°
|
35,000hrs
|
|
HZ-TJD140WPHD
|
140W
|
240V/110V
|
>0.9
|
5500K± 500K
|
P.W
|
>80
|
11900lm
|
Yes
|
IP65
|
120°
|
35,000hrs
|
|
HZ-TJD100WSID
|
100W
|
240V/110V
|
>0.9
|
3000K± 200K
|
W.W
|
>80
|
8000lm
|
Yes
|
IP66
|
120°
|
35,000hrs
|
|
HZ-TJD100WSD
|
100W
|
240V/110V
|
>0.9
|
4000K± 300K
|
P.W
|
>80
|
8500lm
|
Yes
|
IP66
|
120°
|
35,000hrs
|
|
HZ-TJD100WSHD
|
100W
|
240V/110V
|
>0.9
|
5500K± 500K
|
P.W
|
>80
|
8500lm
|
Yes
|
IP66
|
120°
|
35,000hrs
|
|
HZ-TJD100WPID
|
100W
|
240V/110V
|
>0.9
|
3000K± 200K
|
W.W
|
>80
|
8000lm
|
Yes
|
IP65
|
120°
|
35,000hrs
|
|
HZ-TJD100WPD
|
100W
|
240V/110V
|
>0.9
|
4000K± 300K
|
P.W
|
>80
|
8500lm
|
Yes
|
IP65
|
120°
|
35,000hrs
|
|
HZ-TJD100WPHD
|
100W
|
240V/110V
|
>0.9
|
5500K± 500K
|
P.W
|
>80
|
8500lm
|
Yes
|
IP65
|
120°
|
35,000hrs
|
Voltage is depends on local electricty standard, Australia :240V Japan :110V USA :110V Europe :230V
Dimensions(Subject to change without notice)
Packing information:
|
Product
|
Product size
|
Product weight
|
Carton size
|
Carton weight
|
Quantity per carton
|
|
100W
|
340*340*150
|
6.2Kg
|
405*405*190
|
7.2kg
|
1PCS
|
|
140W
|
340*340*150
|
6.2Kg
|
405*405*190
|
7.2kg
|
1PCS |
Different Installaton Way Show:
LED Industrial Lights Recessed-mounted:
Top View
Side View
Led Industrial Lights Surface-mounted
Top View
Side View
Application:
Indoor parking lot, factories, storehouses, toll stations, train station, airport, gymnasiums etc.
